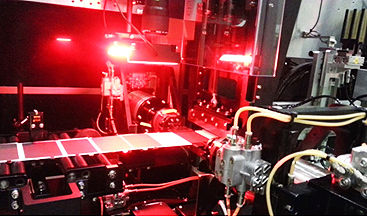

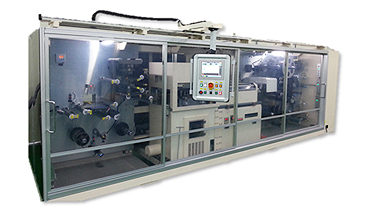

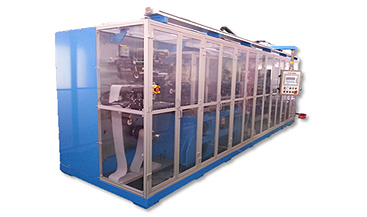

Roll to Roll notching M/C to form tab & v-shape and rewind notched electrode with protection film.

• Laser / Mechanical selectable
• Automatic electrode edge position control
• Notched electrode inspection by vision
• Scrap & foreign particle collection
• High-speed press

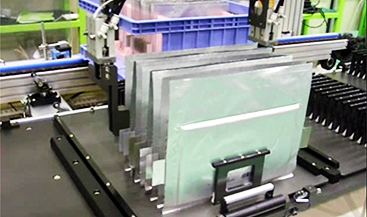

Roll to Sheet notching M/C to form tab & v-shape, cut notched electrode, and automatically stack up into a magazine.

• Laser / Mechanical selectable
• Automatic electrode edge position control
• Notched electrode inspection by vision
• Scrap & foreign particle collection
• High-speed press

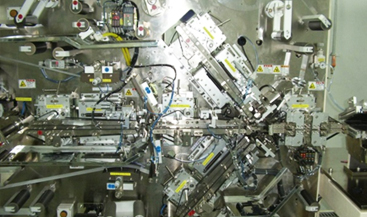

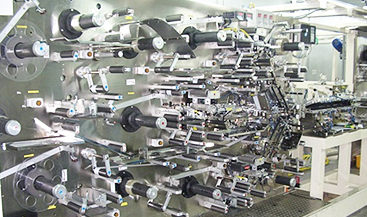

This machine is for making bi-cell which consists of 3 sheets of electrodes (2 cathode/1 anode or 1 cathode/1 anode) and 2 sheets of separators. Input notched electrodes with separators, and laminate electrodes & separators with heat/pressure, and finally cut & stack each bi-cell into the magazine.

• Automatic electrode & separator edge position control
• Electrode & separator lot ID management
• Processed bi-cell inspection
• Magazine auto-change

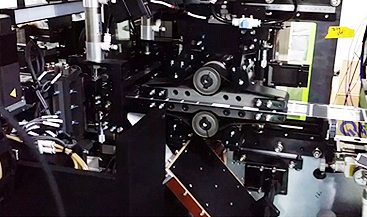

Folding M/C is for making folded cells by laminating bi-cells onto the separator, winding and sealing

• Plural picking prevention
• Separator edge position control
• Position correction by motion control
• Gap (between cells) data management

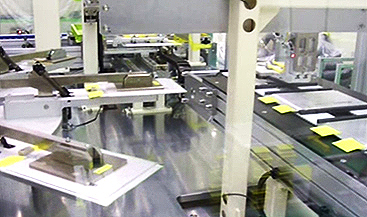

In the Li-PB packaging process, loader/Unloader M/C pick and place polymer cells to change process unit (cell to tray or tray to cell)

• Tray-based process
• Interlocked with main facility
• Cell gauging for preventing tab damage

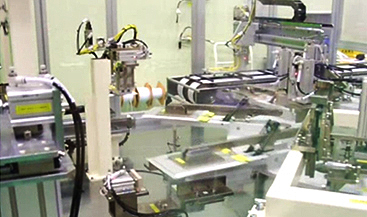

Separate and select formation completed cells by reading tray ID

• Pick & Place Robot
• Interworking with host scheduler
• Tray position alignment

Pouch cell’s edge(wing) folding M/C after degassing,

Sort cells into grading cell data

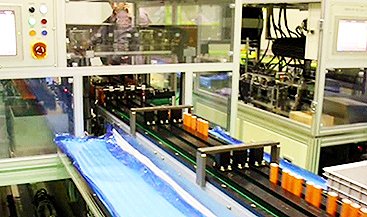

Packing M/C is for stacking complete cells onto tray at final process before ship-out

• Cell position correction stage
• Auto-ejection after palletizing completion
