Prismatic secondary battery assembly m/c to insert J/R into the can

• J/R Sizing
• Bottom Taping
• Auto NG eject by checking insulation of inserted J/R

Prismatic secondary battery assembly m/c to test leakage between top cap and its can, before filling electrolyte into the can

• Determine pass/fail with vacuum/pressure data in a vacuum/pressure

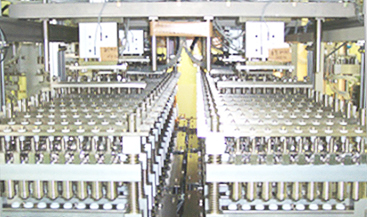

Prismatic secondary battery assembly m/c to fill electrolyte, wait for wetting for a certain period of time, and check leakage

• Electrolyte filling amount check before/after filling
• In chamber type using pallet
• Precise dispensing data management
• Shorten tack time with vacuum/pressure

Prismatic secondary battery assembly m/c to insert ball onto the filling hole and seal the hole with laser welding, and then applying epoxy

• Ball check
• Applying fixed quantity with dispenser
• UV condition check by vision

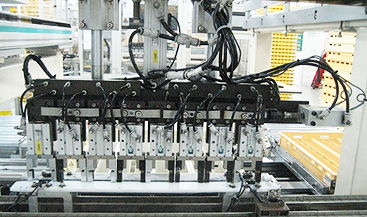

Prismatic secondary battery assembly m/c to unload cells and change process unit (cell to tray)

• Controlled by P&P Robot
